Compare

Navicula winona differs by its lower areola density. Navicula densilineolata has non-attenuated, acutely rounded apices and more coarse areolae (27–30 in 10 μm). Valves of Navicula cryptotenella are smaller, lack long attenuated apices, and have higher stria and areola density. Navicula notha is smaller and has higher stria and areola density. The ends of Navicula radiosafallax are not attenuated and are obtusely wedge-shaped.

LM scalebar = 10 µm

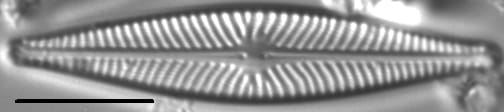

Navicula wildii LM6 Navicula wildii LM5 Navicula wildii LM4 Navicula wildii LM3 Navicula wildii LM1 Navicula wildii LM2
Length Range
29-49 µm
Width Range
6.3-7.8 µm
Striae in 10 µm
12-14

Navicula winona

L.L.Bahls 2012

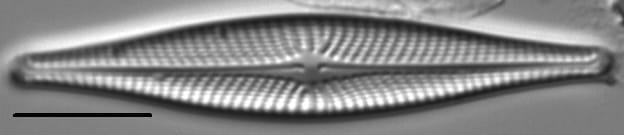

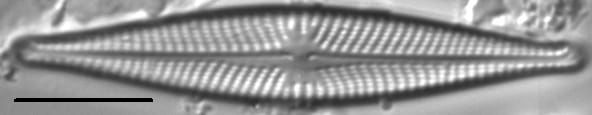

Navicula winona LM6 Navicula winona LM5 Navicula winona LM4 Navicula winona LM3 Navicula winona LM2 Navicula winona LM1
Length Range
39-52 µm
Width Range
7.2-8.2 µm
Striae in 10 µm
12-13

Navicula notha

J.H.Wallace 1960

Gs013091 7 Navicula notha LM3 Navicula notha LM1 Drbc0032 8 Drbc0032 17 Navicula notha LM2 Navicula notha LM4
Length Range
18.7-39.3 µm
Width Range
4.1-5.5 µm
Striae in 10 µm
14-17

Also compare to

Navicula cryptotenella

Lange-Bert. in Krammer and Lange-Bert.

BioData Reference
Lange-Bertalot 2001 Pl 26 Fig 17-23

Navicula radiosafallax

BioData Reference
Lange-Bertalot 2001 Pl 22 Fig 10-13

Navicula densilineolata

Lange-Bert. 1993
