Compare Eunotia incisa
Compare

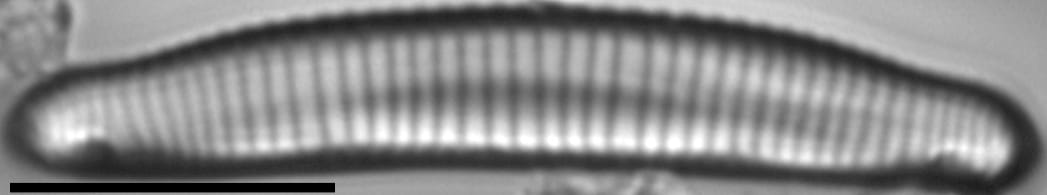

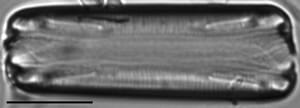

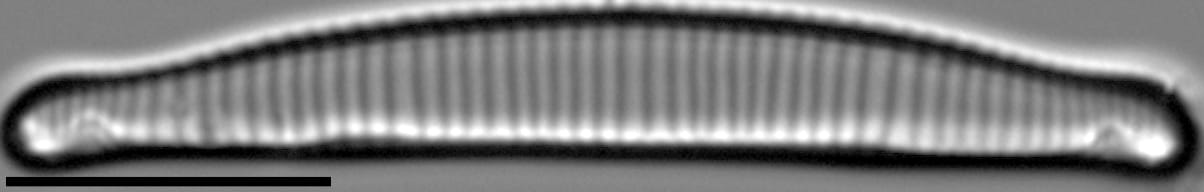

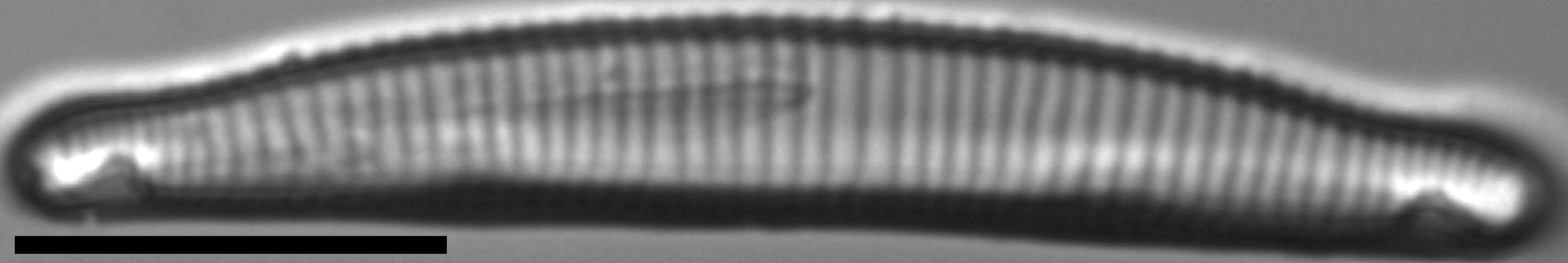

Eunotia incisa is similar to E. canicula and E. acicularis because the helictoglossae in these species are inset from the valve apices which gives each apex the appearance of a 'nose'. Generally, the valves of E. incisa are wider and the helicotoglossae are farther from the apex (more inset) compared to E. canicula. The dorsal margin of E. incisa is more convex and the helictoglossae are closer to the apex (less inset) compared to E. acicularis. Eunotia incisa is also similar to E. papilioforma and E. rhomboidea. Valves of E. incisa, however, are symmetric in regard to apex width and position of the helictoglossae compared to the asymmetry in these features in E. rhomboidea and E. papilioforma. Eunotia novaeangliae is very narrow, and nearly linear.
LM scalebar = 10 µm
Length Range
12-50 µm
12-50 µm
Width Range
2.8-5.0 µm
2.8-5.0 µm
Striae in 10 µm
16-21 in the center valve
16-21 in the center valve
Eunotia rhomboidea
Length Range
18.0-25.6 µm
18.0-25.6 µm
Width Range
2.7-3.8 µm
2.7-3.8 µm
Striae in 10 µm
15-17 in the center valve
15-17 in the center valve
